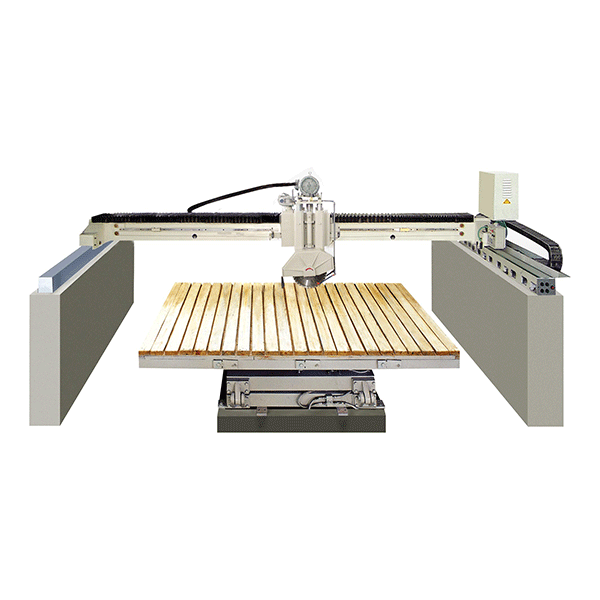

TJQH-400/600 Infrared Fully Automatic Bridge Type Edge Cutting Machine

Generally this machine is provided with fully automatic girder displacement positioning and microcomputer control, and is very high in automation level. Specialist for stone edge cutting work.


The main parts and components of the machine (such as frequency converter, magnetic rule, laser reticule apparatus.) are all of imported good-quality materials, thus ensuring high precision, stable performance, good adaptability as well as high reliability of the whole machine.


It is particularly applicable for cutting valuable and large stone plates

NameUnitLCQH-600LCQH-400
Blade diametermmΦ350-Φ600                     Φ350-Φ400
Worktable dize (Max. cutting size)mm3200×20003200×2000
Blade up/down strokemm220120
Main motorkw1511
Feeding motorkw1.51.5
Slicing motorkw1.11.1
Motorized blade tilt angle
//
Worktable rotation angle(by hydraulic)
90° or 360°90° or 360°
Worktable upturning angle
0°--- 85°0°--- 85°
Water consumptionm3/min44
Voltage/FrequencyV/HZ380V/50HZ380V/50HZ
Dimensions(L×W×H)mm6000*4700*28005800*4700*2800
Weightkg60005500


Please check this website to see how it works: http://v.youku.com/v_show/id_XMjA4MjI1NzQw.html
