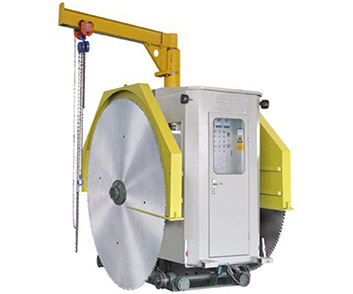

This machine is a modification of original double-blade mining machine. The rising and falling of main spindle is controlled by the hydraulic pressure advantages are small gap,a little wear,no vibration,stable structure and high cutting precision;the service life of cutter head is increased.
The cylindrical guide rall is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system,so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced.It is a mine quarrying machine with significantly increased comprehensive benefits.
Name | Unit | TJSN-1360/1900 | TJSN-1500/2000 |
Diameter of blade | mm | 2200-3600 | 2200-3600 |
Scope of cutting depth | mm | 850-1550 | 850-1550 |
Scope of cutting width | mm | 1360-1900 | 1500-2000 |
Power of main-drive | kw | 45*2 | 45*2 |
Water consumption | m3/h | 5 | 5 |
Total power | kw | 97.7 | 97.7 |
Approximate weight | kg | 6500-8000 | 6500-8000 |
Overall dimension(L*W*H) | mm | 3600*1500*2700/3000 | 3600*1700*2700/3000 |
Name | Unit | TJSN-1950/2450 | TJSN-2600/3100 |
Diameter of blade | mm | 2200-4800*2 | 2200-4800*2 |
Scope of cutting depth | mm | 850-2200 | 850-2200 |
Scope of cutting width | mm | 1950-2450 | 2600-3100 |
Power of main-drive | kw | 45/55*2 (blades size upto 4m, should get 55KW motor) | 45/55*2 (blades size upto 4m, should get 55KW motor) |
Water consumption | m3/h | 5 | 5 |
Total power | kw | 98.5/118.5 | 98.5/118.5 |
Approximate weight | kg | 9500-10500 | 10500-12500 |
Overall dimension(L*W*H) | mm | 4200/5100*2100*3100/3650 | 4200/5100*2700*3100/3650 |
1. Total lower investment than cutting diamond wire saw machine.
2. Can be used for both marble and granite quarry.
3. Higher efficiency.
4. Easier operation.
5. Less stone waste.
6. Tidy environment.
