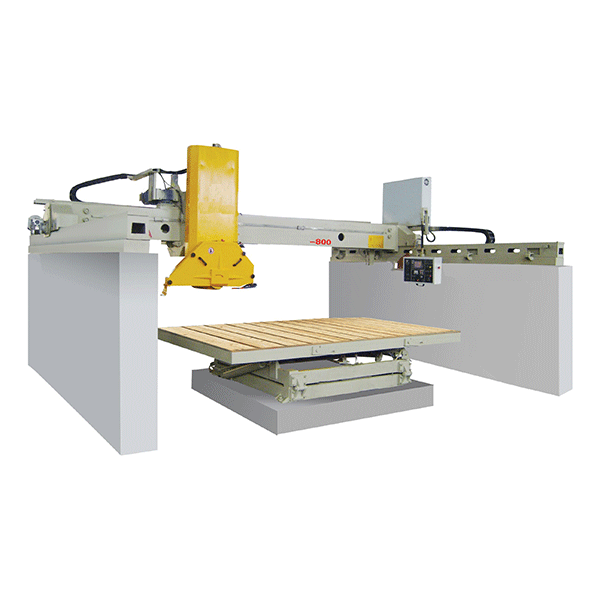

1.Bridge movement by means of precise linear guide ways
2.Z axis movement by lead screw
3.Magnetic rule for slicing measure
4.Stable structure
| Model | TJQH-800 | |
| Blade Diameter | mm | Φ800 |
| Worktable Size (Max. cutting size) | mm | 3200*2000 |
| Blade Up/down Stroke | mm | 400 |
| Main Motor Power | kW | 18.5 |
| Feeding Motor Power | kW | 2.2 |
| Slicing Motor Power | kW | 1.1 |
| Motorized Blade Tilt Angle | ° | 0～45 |
| Worktable Rotation Angle(by hydraulic) | ° | 90 or 360 |
| Worktable Upturning Angle | ° | 0～85 |
| Overall Dimensions(L×W×H) | mm | 6300*4700*2800 |
| Weight | kg | 6800 |
