Product Details

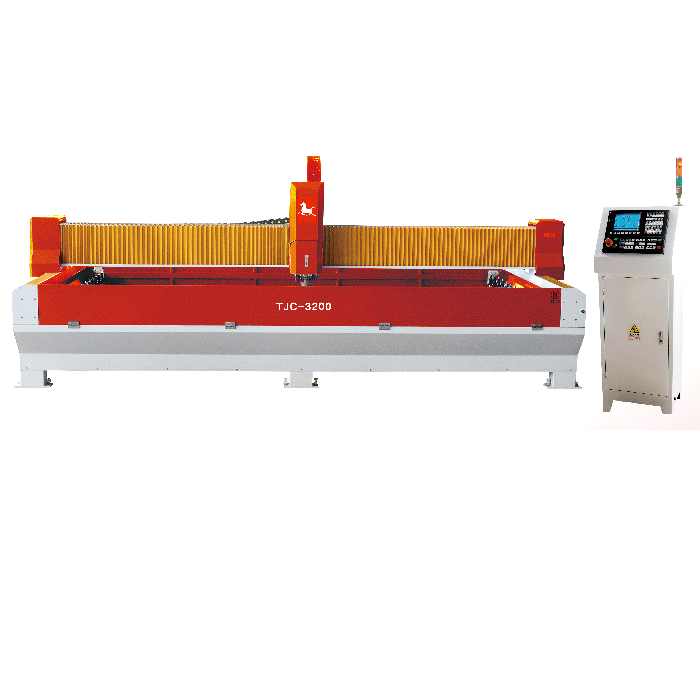

TJC-3200 Countertop CNC Machine

1. It is multi-function stone processing machine which are adopted the most technology in domestic and foreign, combined with the processing in current market. It can process in artificial stone, stone and ceramic plates in one production line for drilling, milling, profiling, grinding, polishing. According to the different models.

2.  It adopts portal struction with more strong and stable

3. the main motor adopted high-speed spindle.

4. The movement speed is adopted by inverter control.

5.  it can be changed the tools automatic according the processing steps

6. The machine is combined with vacuum clamping.

7. It is simply to operate with fast processing speed and high precision.

Processing length3200MM
Processing Width1500MM
Working thickness50MM
Milling cutter diameterΦ10-Φ25MM
Drilling wheel diameterΦ10-Φ50MM
Shapping wheel diameterΦ60-Φ80MM
Polishing wheel diameterΦ50-Φ100MM
Main motor power 5.5KW
Total power9.5 kw
Outline dimension5300X2650X2200MM
Containingone set of machine needs one 20 GP container.
